The Class-D 4-channel amplifier with integrated DSP has 6 digitally processed outputs for connecting external amplifiers, creating a very powerful and multi-channel system in a small space.

Optional BT music streaming and a microphone for auto tuning.

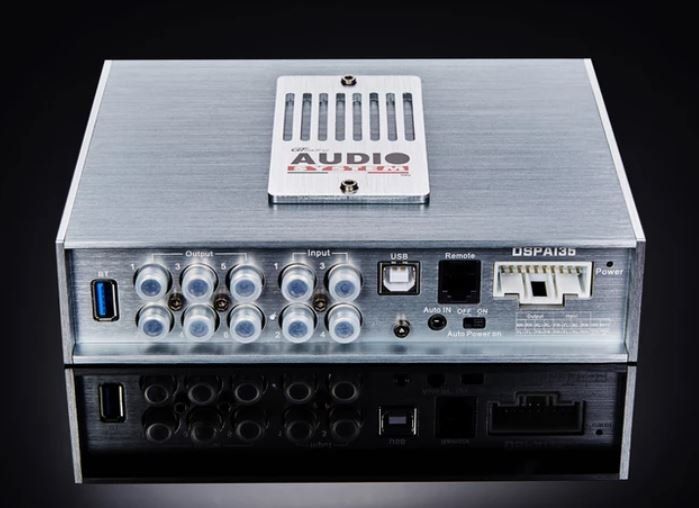

Inputs: 4 x RCA or 4x high-level

Outputs: 6 x RCA for external amplifiers

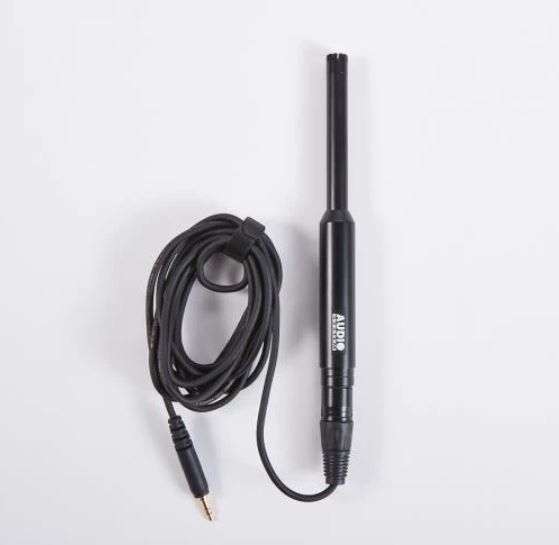

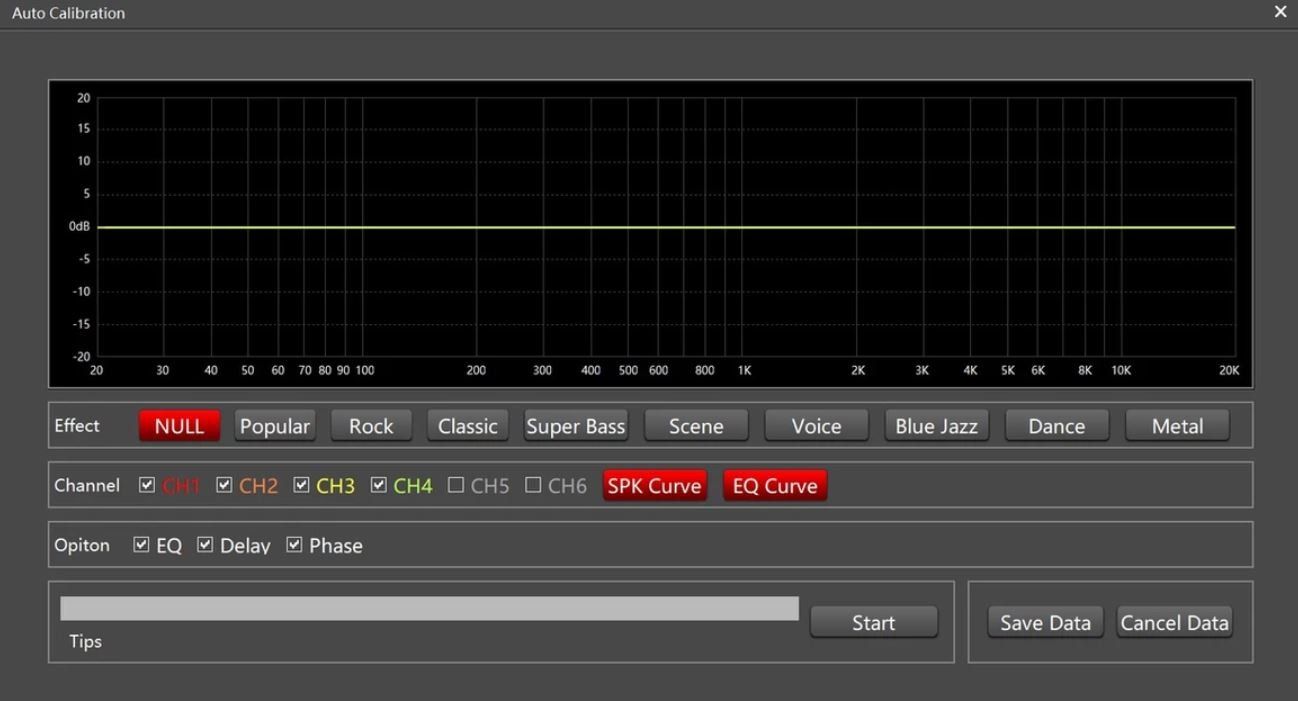

**OPTIONAL** Microphone input for auto tuning

**OPTIONAL** Input for Bluetooth module for streaming music to DSP

Power:4 x 35 Watt R.M.S. @ 4 Ohm (measured 4x 52Watt  R.M.S.).

Input sensitivity:

2 V ÷ 15 V (high level input)

Frequency range: (20 ÷ 22000 Hz)

Slope (dB / Oct): 6-48

• Adjustable Q factor: 0.27 – 40

• Special features: Volume control, preset and main DRC functions

• Phase: 0 ° ÷ 180 °

• Time Delay (ms): 0 – 25 (0.01 steps)

• Auto Sense – auto power on (works with high level input only)

• 6 RCA outputs processed by DSP

Dimensions: 180 x 152 x 40 mm

Weight: 650 g
